structure
Features
- High numerical aperture possible
- Radiation resistant
- High Temperature resistant
- (Biocompatible Material)
- (Sterilizable by ETO, e-beam, gamma radiation)
- Excellent chemical and abrasion resistance
Properties
- Step Index Profile
- Wavelength dependent numerical aperture 0.5 … 0.9
- Operation wavelength range IR: 400nm … 2400nm
- core diameter 5µm ... 600µm
Fiber Design
- Pure fused silica (low OH-)

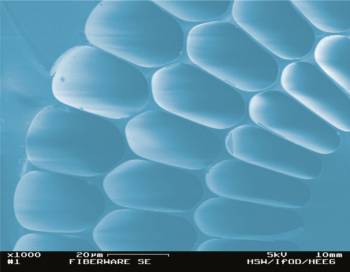

- microstructured fused silica cladding
- Acrylate coating (-40°C to 85°C)
- Silicone resin coating (-40°C to 180°C)
- Polyimide coating (-190°C to 385°C)
Options
- Numerical apertures 0.5 … 0.9
- Metal coating
- Connectors with sealed ends (SMA, FC/PC, ST, DIN)
- AS-Fiber cables
- high temperatur acrylate -40°C to 200°C
- Buffer Options:
- Nylon (-40°C to 100°C)
- ETFE (-200°C to 150°C)
